easyPack prewired beam towers – 360°, 3m, ground installation - Bunker Seguridad Electrónica S.L.

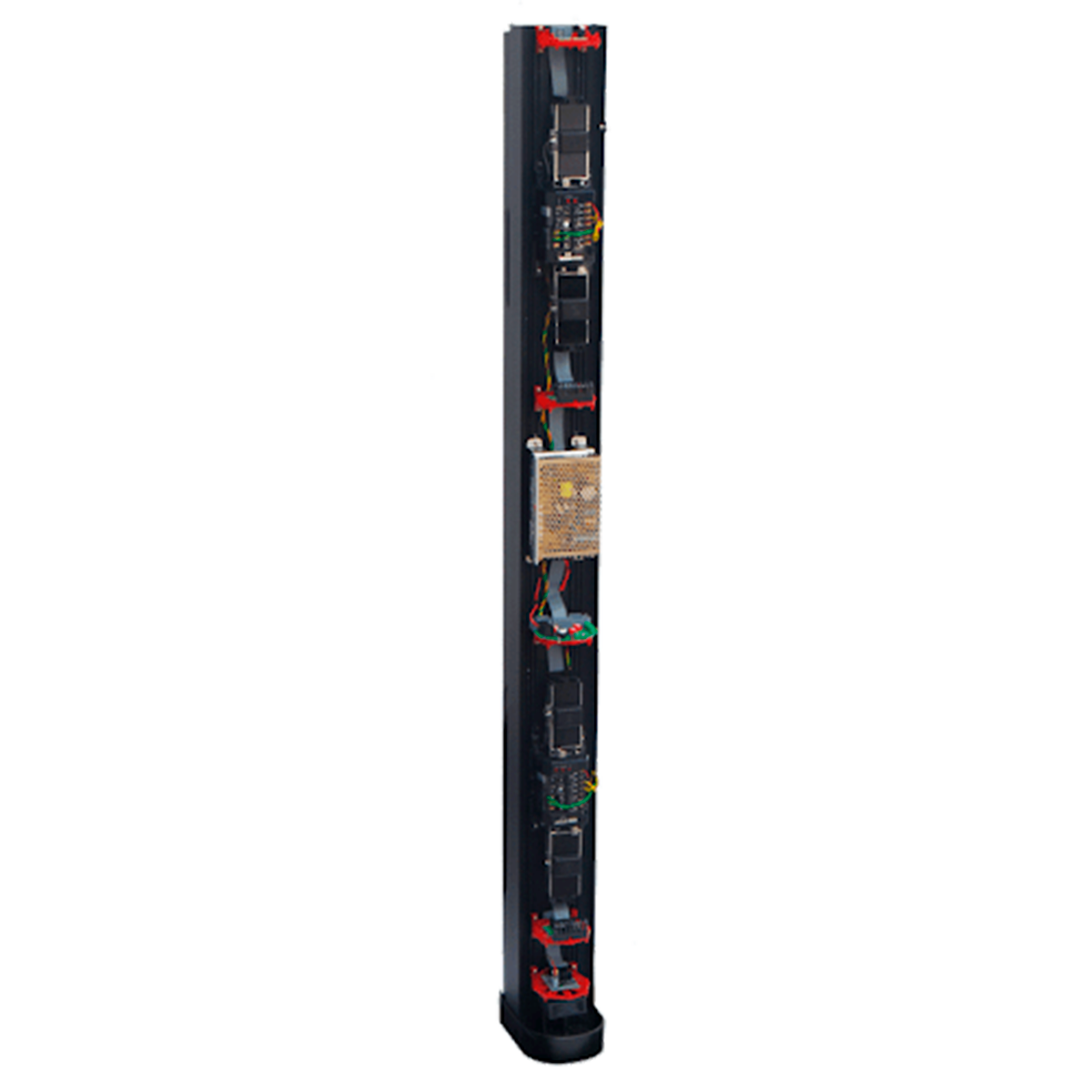

easyPack prewired beam towers – 360°, 3m, ground installation

Customised prewired double-sided beam towers (360°) with all the basic components included, ready to be installed.

Height: 3 metres.

Ref. D304RR - D304TT - D304TR - D306RR - D306TT - D306TR -D308RR - D308TT - D308TR Categories: , , Tags: , , , ,

Description

This is a very flexible perimeter solution which can be adapted to the requirements of each installation, both regarding beams towers’ format and the number and model of sensors included. With the easyPack photoelectric beam towers you will get all the components previously fixed, wired and carefully organised in the beam tower, you just have to align your preferred IR active photoelectric beams from Takex, Optex or others.

Ground mounting. For wall-mounting the accessory PTWB is required.

Features:

Each reference includes a central body in aluminium, two polycarbonate profiles, top/bottom covers and also an anti-sabotage tamper switch, as many heaters as photoelectric sensors (transmitters or receivers), thermostat and the motherboard that manages all the system.

Everything is prewired and mounted together with the IR beams (*) – chosen by the customer – and their mounting back plates.

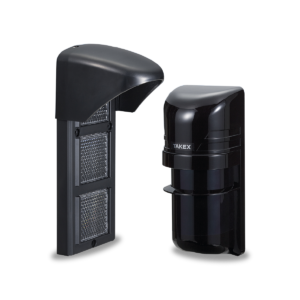

(*) Compatible with different models of photobeams (TAKEX, OPTEX, ATSUMI and others). These are not included in price. easyPack can also be supplied without photobeams.

Besides, it includes 70cm side brackets (MB3SB).

Additionally as an option, you can acquire other accessories for easyPack prewired beam towers such as fans and/or power supplies as well as the other usual Bunker’s beam towers’ accessories (anti-climb top tamper, concrete floor bracket, etc.). For more information see “Accessories” paragraph.

Most common models for 3m height:

  • D304RR – 3m, 360° tower ready for 4 Rx on each side.
  • D304TT – 3m, 360° tower ready for 4 Tx on each side.
  • D304TR – 3m, 360° tower ready for 2 Tx on one side and 2 Rx on the other side.
  • D306RR – 3m, 360° tower ready for 6 Rx on each side.
  • D306TT – 3m, 360° tower ready for 6Tx on each side.
  • D306TR – 3m, 360° tower ready for 2 Tx on one side and 3 Rx on the other side.
  • D308RR – 3m, 360° tower ready for 8 Rx on each side.
  • D308TT – 3m, 360° tower ready for 8 Tx on each side.
  • D308TR – 3m, 360° tower ready for 4 Tx on one side and 4 Rx on the other side.

(Tx = transmitter/s; Rx= receiver/s)

For other configurations, please consult us.

Specifications

A standard column is composed of tamper, motherboard and heater. Optionally, we also provide a fan and a power supply.

The tamper warns of any attempt to manipulate the tower.

The motherboard manages every Rx/Tx in the tower as well as all the peripherals (heater, tamper and fan) to avoid condensation, it includes a thermostat that activates the heaters and the fan, if so configured, in case of low temperatures. Includes alarm, antisabotage tamper and anti-climb tamper outputs and photoelectric beams environmental disqualification output.

One heater is included per each Rx/Tx that the tower contains.
There are 3 available configurations:
12V – 250mA – 3W  Uses just one resistance.
12V – 500mA – 6W  Uses two resistances.
24V – 250mA – 6W  Uses two resistances.

The fan is optional and configurable to operate at low temperatures with the heaters, in order to help
avoiding the condensation, or to operate at high temperatures making the air circulate and thus improving equipment performance.

Power supply (optional) with battery charger output.

Accesories

Power supply - DC 12V
DC 12V
12V 3,5A power supply (mounting plate included).

Power supply - DC 24V
DC 24V
24V 1,8A power supply (mounting plate included).

SF1
SF1
Fan (12V) for easyPack towers

SF2
SF2
Fan (24V) for easyPack towers.

TWE
TWE
Lamp installation accessory for easyPack towers.

TWC
TWC
CCTV camera installation accessory for easyPack towers.

CR3SB Lateral support
CR3SB
0.70 m high fixing brackets, already included with 3 m high towers for easyPack towers.

TWEB-concrete-floor-brackets
TWEB
Floor bracket for a concrete base on uneven and difficult grounds for easyPack towers.

TWAA Anti-climb tamper
TWAA
Anti-climb tamper for easyPack tower

TWCAB Guy wires
TWCAB
Guy wires for extreme wind conditions.

TWSM Bracket to fix TWD towers to the wall
TWSM
Bracket to fix TWD towers to the wall. It does not include the fixing screws.

TWSM Bracket to fix TWD towers to the wall
BATTERY PACK
Power supply unit for low-battery devices and signal transmitters. Bracket required, not included. Please check accessories for tower, wall or pole mounting.

BP-WB
BP-WB
Wall bracket for BATTERY PACK.

BP-PB
BP-PB
Pole bracket for BATTERY PACK.
BP-TB
BP-TB
Tower bracket for BATTERY PACK.

Downloads

easyPack prewired towers photoelectric beam dossier
