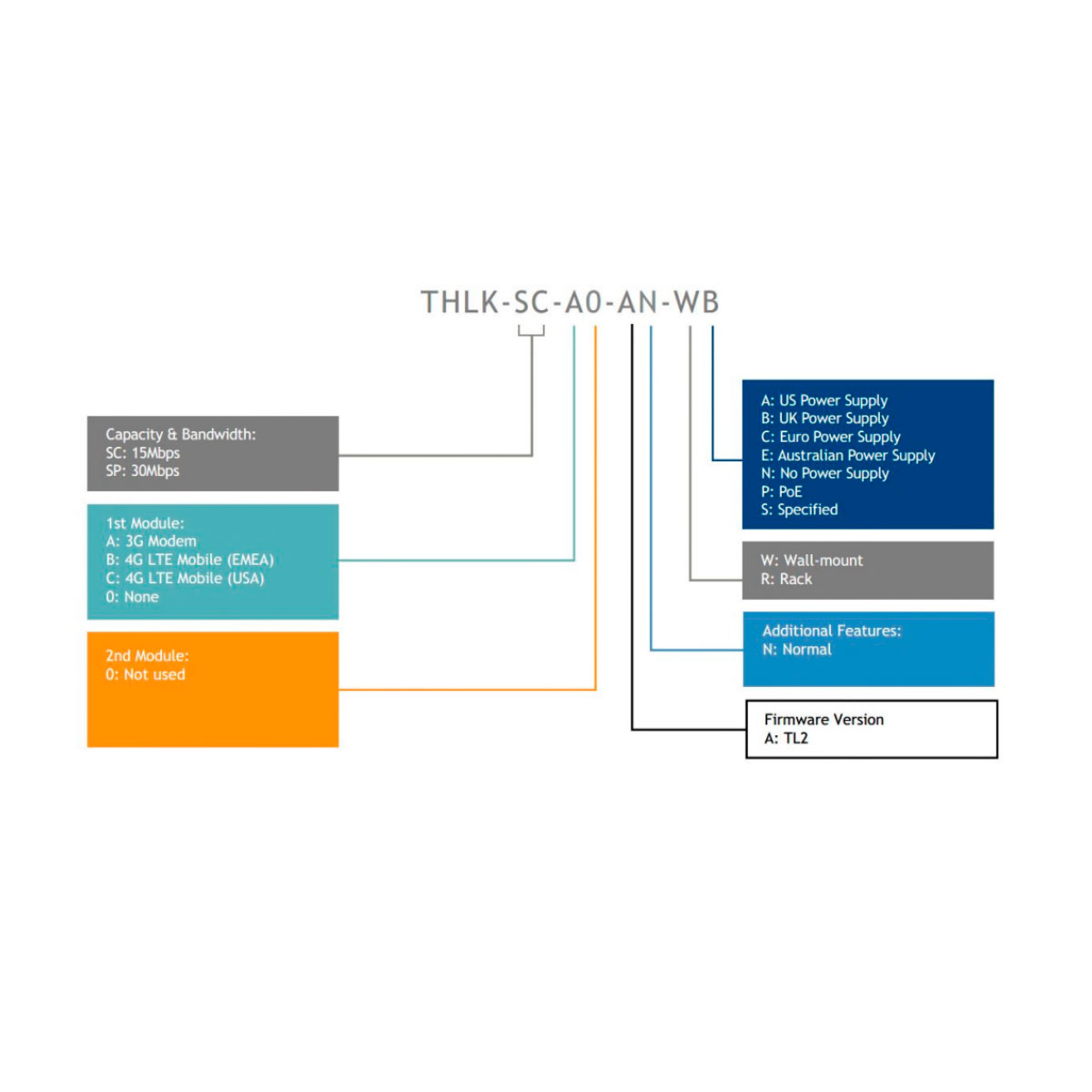

VPN hardware ThruLink™ Standard THLK-SC-OO-AN-xz

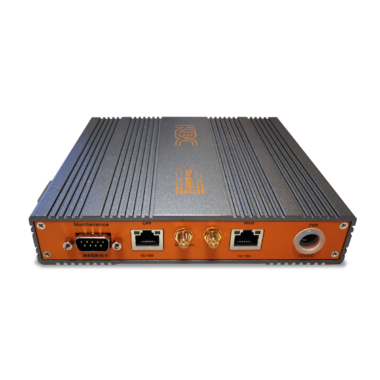

ThruLink™ standard capacity hardware VPN transceiver. 15Mbps, TL2 firmware, up to 256-bit AES, Camellia, Blowfish. (1) LAN port, (1) WAN port, desktop/wall-mount.


ThruLink™ standard capacity hardware VPN transceiver. 15Mbps, TL2 firmware, up to 256-bit AES, Camellia, Blowfish. (1) LAN port, (1) WAN port.

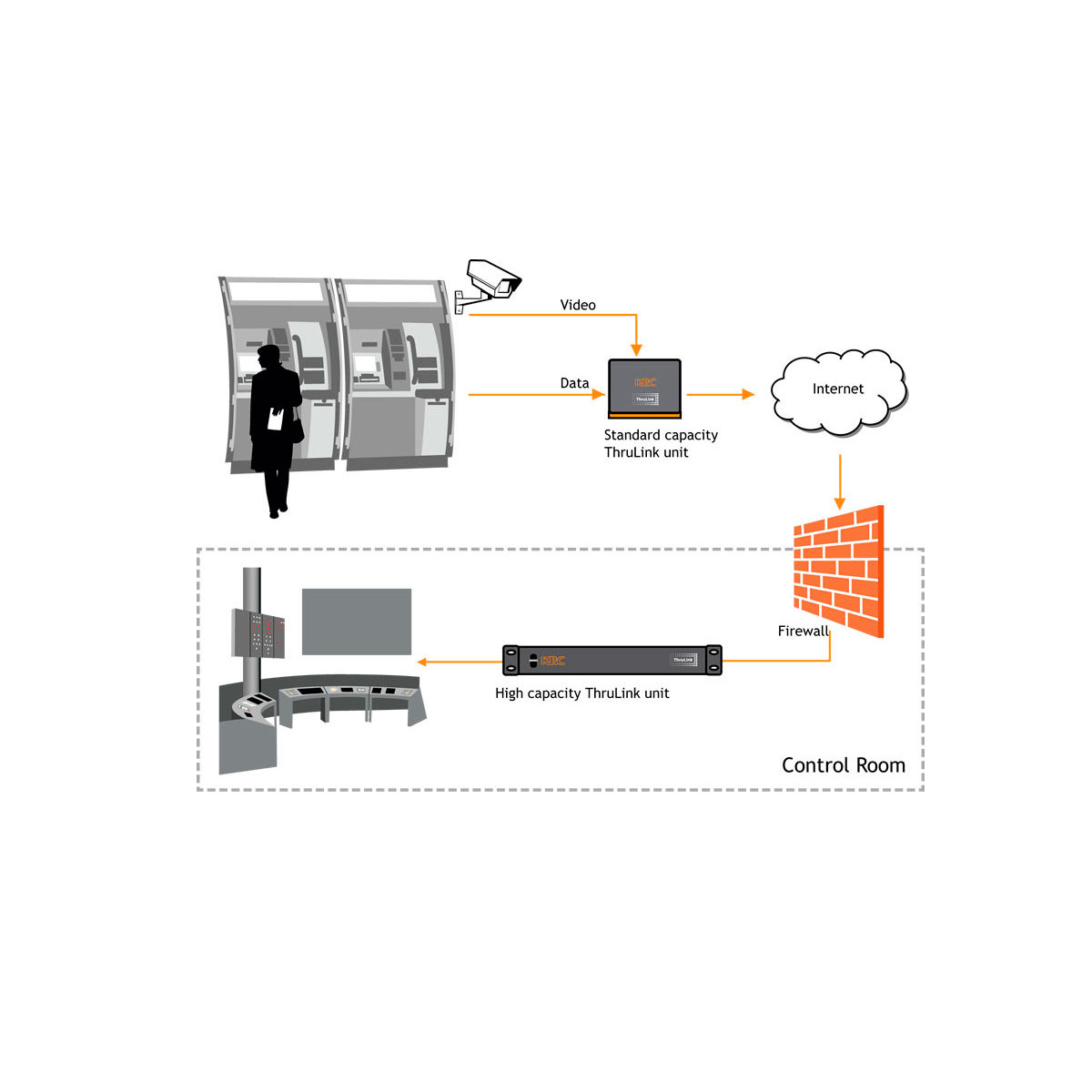

The KBC ThruLink is a hardware VPN device that allows secure communications to be established over any standard, public or private TCP/IP network. ThruLink performs behind firewalls, NAT devices and through almost any other type of network configuration and offers encrypted communication for all IP protocols regardless of the type of traffic. When deployed, ThruLink provides a secure and encrypted tunnel for network communications that will not affect TTL, UPnP, VLAN information, broadcast, multicast, or any other traffic. A builtin modem provides 3G/4G connectivity and supports all primary network providers. In addition to star based applications, ThruLink supports mesh-based networks allowing direct connection without the need for central server authentication.


  • Encrypted communication up to 256bit via tunneling
  • Throughput: Standard: 15Mbps, Standard Plus: 30Mbps
  • Optimized for video
  • Configurable for 3G/4G networks
  • Supports mesh applications – no central server requirement
  • Multiple failover
  • Simple installation
  • Easy-to-use graphical user interface
  • No need to make network changes
  • Diagnostic tools: network traffic monitoring, basic traceroute and ping function
  • IPv4 and IPv6 support
  • DHCP
  • PoE supported on WAN port (PD device)
  • Secure encrypted certificate based connection (RSA)
  • DHCP service on LAN port (optional)
  • Built to perform in non-conditioned environments
  • Supports RS-485 data transmission



    • Standard: 15Mbps


    • AES: 128/192/256bit
    • Blowfish: 128/192/256bit
    • Camellia: 128/192/256bit
    • SHA1, SHA256(1)
    • RSA: 2048
    • FIPS 140-2(2)

Management: Web GUI

Mobile Interface

    • Band:
      • Quad-band WCDMA/HSPA/HSPA+: 2100/1900/900/850MHz
      • Quad-band GSM/GPRS/EDGE: 1900/1800/900/850MHz
    • Max Transmitter Power:
      • WCDMA/HSPA/HSPA+: +24dBm (power class 3)
      • 2100/1900/900/850MHz
      • GSM/GPRS 850/900MHz: +33dBm (power class 4)
      • GSM/GPRS 1800/1900MHz: +30dBm (power class 1)
      • EDGE 850/900MHz: +27dBm (power class E2)
      • EDGE 1800/1900MHz: +26dBm (power class E2)


    • Operating Temperature:
      • Standard temp -40 – +70°C / 14 – 158°F
      • Extended(6): -40 – +85°C / -4 – 185°F
    • Operating Humidity: 0 to 95% non-condensing
    • Mean Time Between Failure (MTBF) >200,000 hours
    • Dimensions(3): 190 x 165 x 29mm / 7.5 x 6.5 x 1.125


    • 10/100/1000: 2 x RJ45(4)
    • 3G / 4G: SMA (male)
    • Serial: DB9
    • Power: Jack socket or PoE
  1. Automatically set depending on encryption type used
  2. Please contact us for FIPS compliant encryption library
  3. Product body dimensions. Please contact KBC Networks for product drawing and dimensions of mount
  4. When mobile port is used, one of the RJ45 interfaces will be disabled
  5. Please request the region requirement when purchasing
  6. Maximum extended temperature for short periods of operation


Ref. MDR20-12
DIN rail power supply for ThruLink™ Standard and Standard-Plus. 20W, 12VDC out, wide temperature range.
