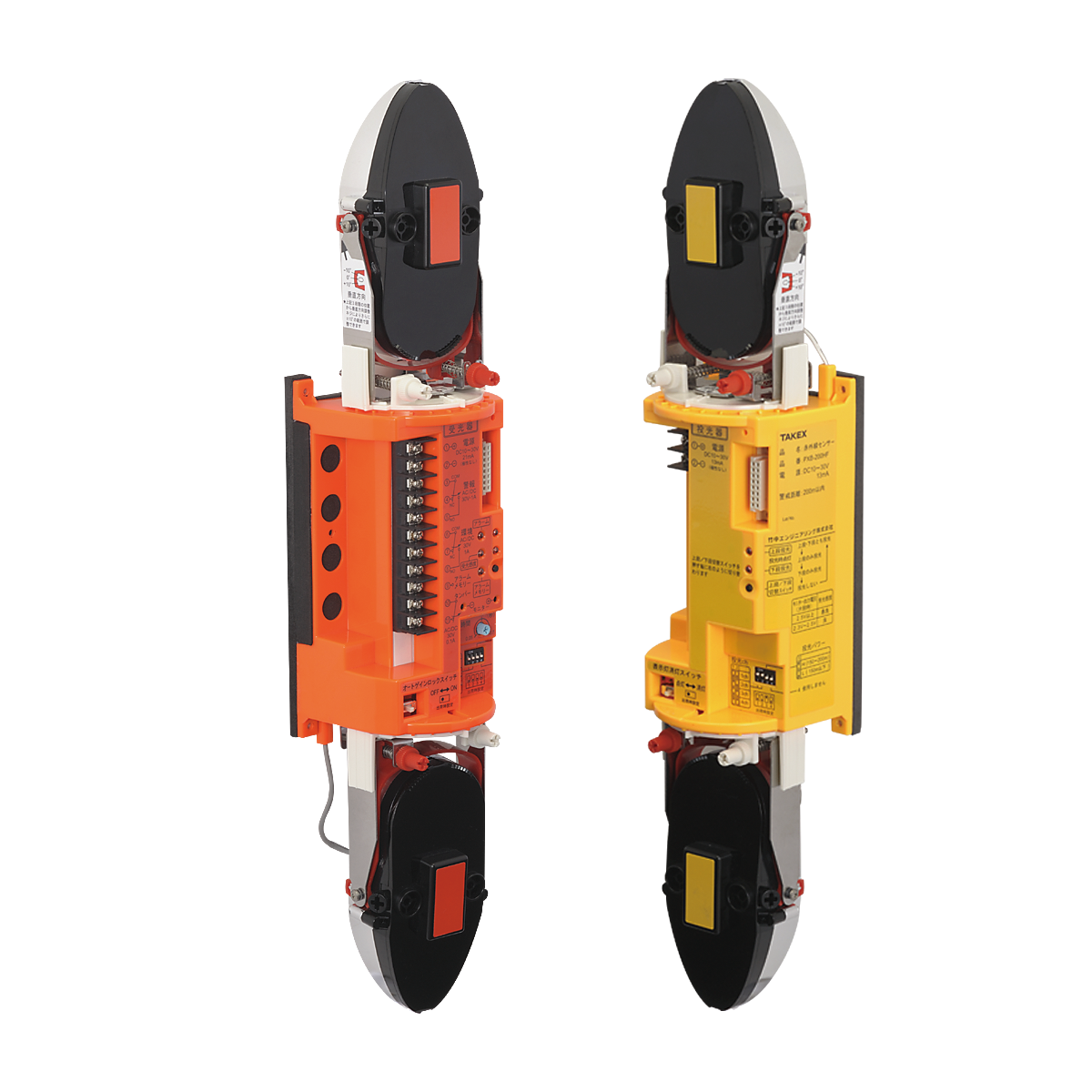

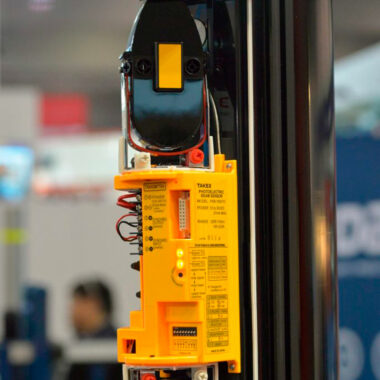

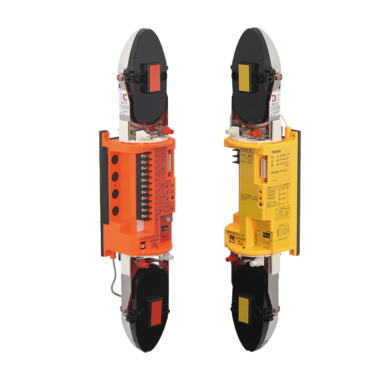

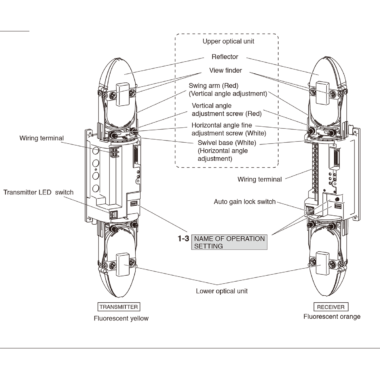

Photoelectric beams PXB-50/100/200HF-KH

PXB-HF-KH series beams are 4-channel quad beams designed specifically for use in beam towers. They include environmental monitoring circuit for maximum stability in severe weather conditions, perfect for long range perimeter intruder detection.


PXB-HF-KH series beams provide 4 selectable beam channels to prevent crosstalk.

  • PXB-50HF-KH: 4 x synchronised high power beams. Range: up to outdoor 50m / 100m indoor.
  • PXB-100HF-KH: 4 x synchronised high power beams. Range: up to outdoor 100m / 200m indoor.
  • PXB-200HF-KH: 4 x synchronised high power beams. Range: up to outdoor 200m / 400m indoor.

More features:

  • Double coated electronics for demanding environments
  • Double modulation for unsurpassed light immunity
  • Increased beam separation minimises nuisance alarms
  • Vivid internal colour aids beam alignment procedure
  • Lightning and surge protection up to 15kV
  • Environmental monitoring circuit
  • Dynamic auto-gain lock (AGL)
  • 50,000 lux sunlight immunity


  • Model: PXB-50HF-KH – PXB-100HF-KH – PXB-200HF-KH
  • Detection system: Near infrared beam interruption system (TX/RX 4 beams simultaneous interruption) .
  • Infrared beam: Double modulation pulsed beam by LED
  • Max. beam range (approx.): 50m/100m/200m outdoor and 100m/200m/400m indoor
  • Response Time: 0,05 sec to 0,7 sec (Variable at pot)
  • Current consumption: 30mA or less / 32mA or less /34mA or less
  • Alarm output: Dry contact relay output form C – Contact action :Interruption time + delay time (2 sec) – Contact capacity : 30 V (AC/DC) 1A (resistive load) Protective resistor
  • Environmental output: Dry contact relay output form C – Contact action: Output when environmental conditions worsen – Contact capacity: 30V (AC/DC) 1A (resistive load) – Protective resistor
  • Alarm LED: Red LED (Receiver) | ON : when an alarm is initiated
  • Attenuation LED: Red LED (Receiver) | ON : when beam reception is attenuated
  • Ambient temperature range: – 35°C to + 66°C
  • Beam Adjustment: Horizontal : ±90° / Vertical : ±20°
  • Functions: Modulated beam frequency selection, Tone indicator, Environmental module ,Beam power selection, Transmitting power adjustment, Alarm memory indication, Programmed AGC, Auto-gain lock function, Monitor Jack, Response time adjustment, Upper/Lower beam switch, Wireless checker
  • Mounting positions: Outdoor / Indoor
  • Wiring: Terminals


If you need some information about related accessories, please consult us.
