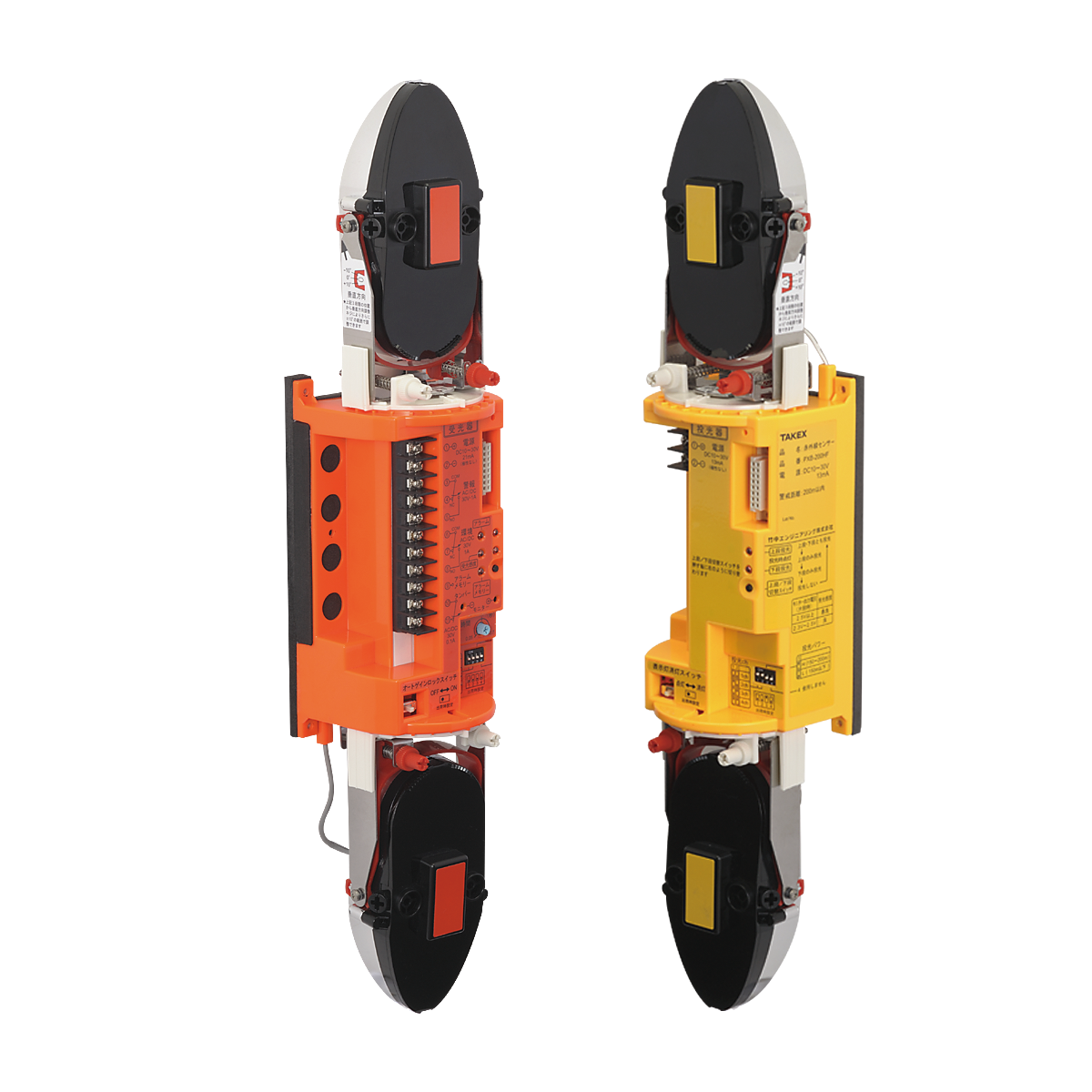

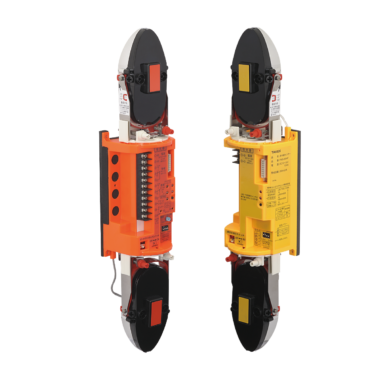

High security anti-crawl beam PXB-100ATC-KH

The PXB-100ATC-KH photoelectric beam sensor is designed specifically for use in beam towers for high-risk applications where detection of all intrusion attempts is critical. Sophisticated dual response output systems have been designed to distinguish and allocate specific alarm responses based on the size and speed of target objects moving through the detection area, and a unique synchronized timing system ensures unrivalled detection performance and versatility.

Ref. PXB-100ATC-KH Categories: , Tags: , , , , ,

Description

TAKEX KH series beams and Bunker Seguridad towers are a reliable combination for perimeter intrusion detection.

For distances up to 100m (330ft) outdoor and up to 200m (660ft) indoor.

Features:

  • Independent control of upper and lower beams
  • Double coated electronics for demanding environments
  • Choose between synchro-quad and anti-crawl operation
  • Dual outputs for crawl attempt and full beam break
  • Sync wire allows unlimited stacking without crosstalk
  • 4 selectable beam channels
  • Increased beam separation minimises nuisance alarms
  • Vivid internal colour aids beam alignment procedure
  • Lightning and surge protection up to 15kV

Specifications

  • Model: PXB 100-ATC-KH

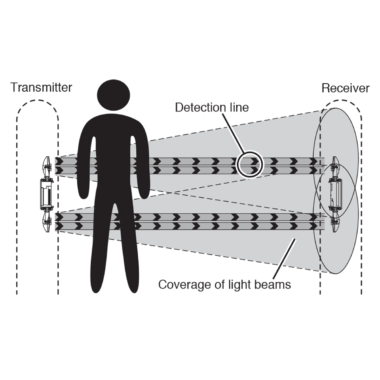

  • Detection system: Near infrared beam interruption system (4 beams simultaneous interruption or upper/lower 2 beams interruption) .
  • Infrared beam: Double modulation pulsed beam by LED
  • Protection distance: Outdoor 100m (330ft) or less / Indoor 200m (660ft) or less
  • Response Time: AT output : upper and lower 2 beams simultaneous interruption 0,05sec.
    0,1 / 0,2 / 0,3 / 0,5 sec. by either level interruption – HF output : 0,05 sec byupper/ lower 2 level simultaneous interruption.
  • Supply voltage: 12V to 30VDC (Non-polarity)
  • Current consumption: Transmitter : 27mA / Receiver : 48mA
  • Alarm output: Dry contact relay output N / C or N / O selectable – Contact action :Interruption time (min. 2 sec) – Contact capacity : 30 V (AC/DC) 1A (resistive load) Protective resistor
  • Environmental output: Dry contact relay output : N/C or N/O selectable – Action :activated when weather condition worsens (min. 5 sec) – Contact capacity : AC/DC30V 1A (resistive load) – Protective resistor
  • Alarm LED: Red LED (Receiver) | ON : when an alarm is initiated
  • Attenuation LED: Red LED (Receiver) | ON : when beam is attenuated
  • Ambient temperature range: – 35°C to + 66°C (-31°F to +151°F)
  • Beam Adjustment: Horizontal : ±90° / Vertical : ±20°
  • Functions: Modulated beam frequency selection – Tone indicator – Environmental module -Beam power selection – Transmitting power adjustment – Programmed AGC – Synchro timing selection – Auto-gain lock function – Monitor jack – Tamper – Response time adjustment – Alarm output selection – Environment output selection – Upper / Lower beam switch – Wireless Alignmnet Checker connecting function
  • Mounting positions: Inside Beam Towers
  • Wiring: Terminals
  • Weight: Transmitter: 360g – Receiver: 450g

Accesories

If you need some information about related accessories, please consult us.

Downloads

Manual PXB-100ATC-KH TAKEX
