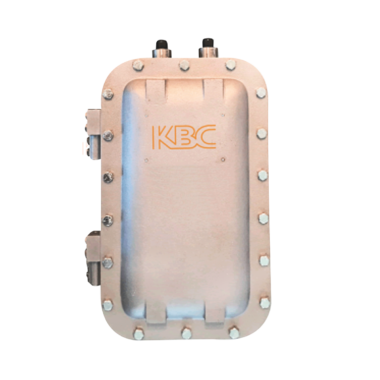

Explosion-proof Wireless solution – WES3HTG-EXP-Cz

Wireless solution in an explosion proof housing for use in extreme environments.  It offers the same great performance of the WES3HTG series with high throughput (up to 650Mbps bi-directional), 5GHz wireless Ethernet radio, 17dBi directional antenna, PoE or midspan injector. Selectable point-to-point host, point to multipoint host or client.

Description

The high performing explosion-proof wireless solutions WES3HTG-EXP offer the same great performance of the WES3HTG series in an explosionproof housing for use in extreme environments. Certified as Class I, II Division 1, Groups B,C,D,E,F,G.

The WES3HTG-EXP product is designed for point to point and point to multi-point solutions with throughput up to 650Mbps available. 17dbi and 9dbi patch antenna options are available.

The WES3HTG-EXP is suitable for installation in a wide variety of IP camera, access control, and industrial automation systems.

The product uses a removable DIN rail clip that can be positioned on the side or back of its enclosure offering multiple installation options.

Features:

  • IEEE802.11ac compliant radio, 5GHz
  • Mounts on Top Hat EN 50022 DIN rail
  • Transmission Power Control, up to 30dBm output power
  • Configurable for client / singlepoint host / multipoint host
  • Secure transmission: WPA2 – AES or TKIP encryption
  • Antenna alignment & site signal survey tolos
  • Distance adjustment for long range transmission
  • Range of antenna options
  • Passive midspan compliant PoE support
  • MIMO technology providing 1.3 Gbps aggregate throughput

Specifications

Standards

    • IEEE Standards:
      • IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX
      • IEEE 802.3ab 1000BASE-T, IEEE 802.3x Full Duplex
      • IEEE 802.11a 5GHz, IEEE 802.11h ETSI DFS & TPC
      • IEEE 802.11n MIMO

Radio

      • Frequency
        • USA & Canada (FCC) U-NII3: 5180 – 5240MHz, 5745 – 5825 MHz
        • Europe: 5500 – 5700 MHz
      • Frequency Operation :
        • Auto-select
        • User static selectable
        • Dynamic Frequency Selection (ETSI DFS)
      • Power Output:
        • 30dBm max
        • Transmit Power Control (ETSI TPC)
      • Channel Bandwidth Spectrum: Selectable 20, 40 or 80MHz

Antenna Options

  • 5dBi: Omni-directional
  • 17dBi:
    • Directional integrated patch
    • Dual polarization
    • Beamwidth:
      • Azimuth:Horizontal 30°, vert 33° (Conduction & Radiation)
      • Elevation: Horizontal 17°, vert 17°

System

        • Data throughput: HT40 HT80 (300Mbps-650Mbps)
        • Latency <10ms
        • Encryption TKIP / AES encryption up to 128 bit

Power Method

        • Direct Wiring: 120 VAC

Mechanical (unit)

        • Casing: IP66/TYPE4 protection
        • Dimensions (L x W x D): 286mm x 235mm x 145mm (11.25” x 9.25” x 5.69”)
        • Weight:16.24kg / 35.8lb
        • Installation: Wall-mount or pole-mount

Environmental

        • Operating Temperature: -40°~- +74°C / -40°- +165°F
        • Storage Temperature: -40° – +90°C / -40°- +194°F
        • Operating Humidity: 5 to 95% non-condensing
        • Mean Time Between Failure (MTBF): > 1,500,000 Hours

Connectors

        • 10/100/1000Mbps Electrical 1 x RJ45

Approvals

        • FCC Part 15 Subpart C: Class B
        • C: Class B
        • EN 55024 (IEC61000-4-2,3,4,5,6,8,11): Electromagnetic Immunity
        • EN 55022 (CISPR 22): Electromagnetic Interference (Conduction & Radiation)
        • EN 60 950: 1992+A1: 1993+A2: 1995+A4: 1996+A1:1997: Low Voltage Directive
        • EN 300 328-2
        • EN 300 826
        • EN 301 489-17
        • EN 301 893
        • R&TT Directive (1999/5/EC)

Accesories

If you need some information about related accessories, please consult us.
