eCopper™ – EECF4-DN1-R-WN-B

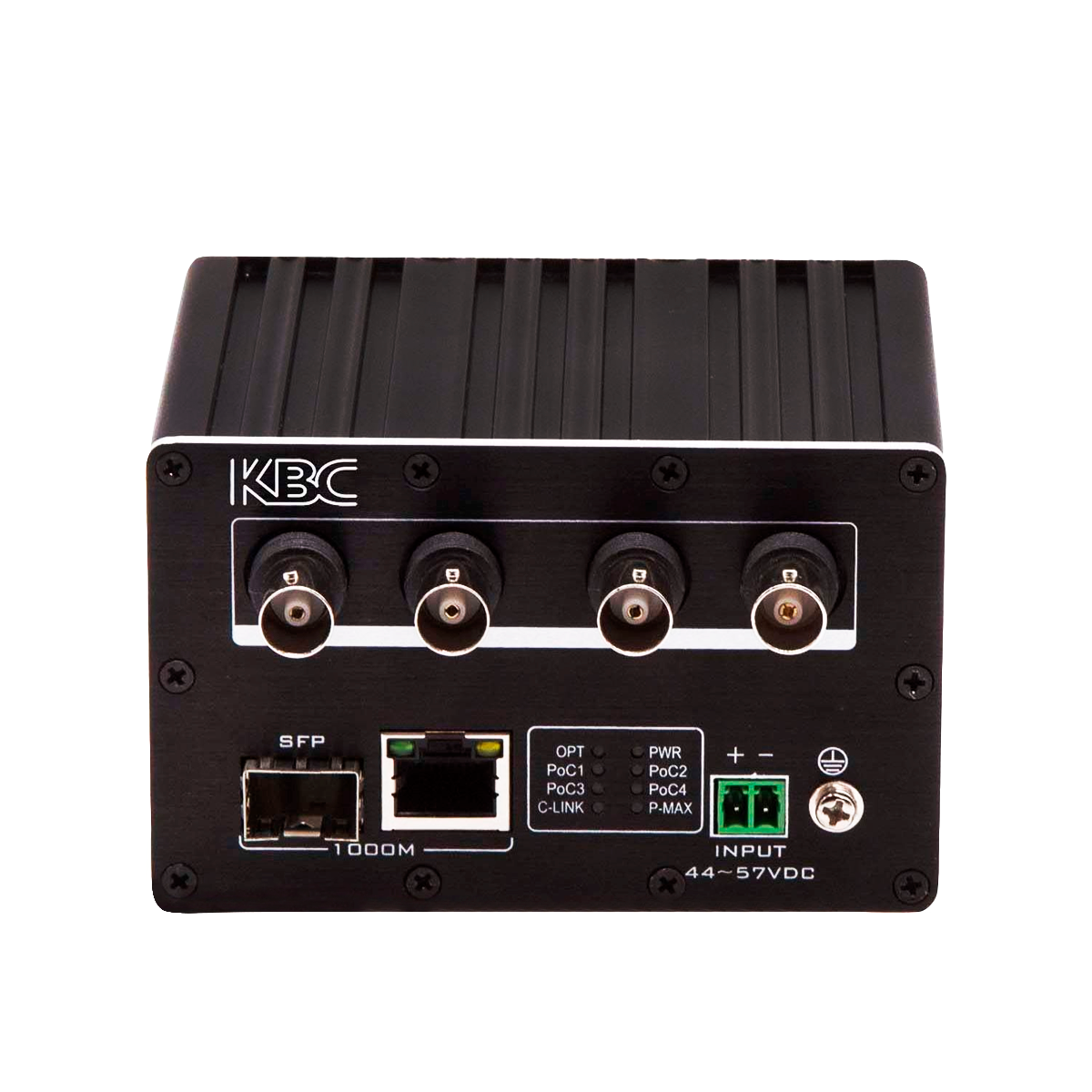

eCopper™ – The KBC EECF4-DN1-R-WN-B iThe KBC EECF4-DN1-R is an Ethernet over Coax (EoC) receiver with 4 coax ports with Power Over Coax (PoC) up to 700m, EoC/PoE+ up to 300m. (1) 10/100/1000Mbps Ethernet port, (1) Gigabit SFP port. Input 48~57VDC. Desktop/wallmount. Requires power supply sold separately.

Ref. EECF4-DN1-R-WN-B Categories: , Tags: , , , ,


The KBC eCopper™ EECF4-DN1-R-WN-B line of products offer a cost-effective way to connect the latest IP cameras using existing coax or copper (UTP) wiring to a remote monitoring station. In addition to saving costs and time from cabling infrastructure upgrades to CAT5/5e/6, eCopper™powers both its transmitter and remote cameras, eliminating the need for any additional power source at the camera site. eCopper™also extends the IP camera cable run distance from 100 to 300 meters, making it ideal for upgrading analog to IP cameras and other systems in large corporate buildings, retail, casinos, banks, prisons, stadiums and other applications.

The KBC EECF4-DN1-R is an Ethernet over Coax (EoC) receiver with 4 coax ports with Power Over Coax (PoC) and 1*10/100/1000M Ethernet ports,1*1000Base-FX SFP port. This receiver provides connectivity up to 4 units PoC/PoE version EECF1-LS1-T-MN-B transmitter. Power is supplied to the transmitter through the coaxial cable. Varying data rates are supported depending on cable distance and quality. This product also provides PoC management which allows the operator to remotely switch power on or off to any of the coax channels. Plug-and-play design ensures ease of installation with no electrical adjustment needed.LED indicators are provided to show the operational status of the unit clearly. This receiver is available in DIN rail mount and wall mount.


  • 4 coax ports with PoC
  • 1 *10/100/1000M Ethernet ports,1*1000Base-FX SFP port
  • PoC management
  • Connect up to 4 units EECF1-LS1-T-IN-B or EECF1-LS1-T-MN-B or any combination
  • Coax data rate >50Mbps (300m)
  • PoE+ is supported up to 300m based on coax quality and applied voltage to coax (48~57VDC)
  • Over current and short circuit protection
  • Unique PoC transmission protection design so that no power is output when transmitter end is not connected



  • IEEE Standards:
      • IEEE 802.3, IEEE802.3u
      • IEEE 802.3, IEEE802.3u

LAN Port:

  • 10/100/1000M Base-T: 1
  • Gigabit SFP(1): 1

Coax Port

  • No of Ports: 4
  • Cable: Coaxial Cable (75Ω)
  • Data Rate (1): >50Mbps (300m)
  • Maximum PoE Distance(2): 700m
  • Maximum PoE+ Distance(2): 300m

PoC Management

  • Individual channel PoC on/off
  • Individual channel status LEDs


  • PoC Power Input: >48~57Vdc
  • Power Consumption: ≤5W


  • Coax: 6kV
  • Ethernet: 2kV


eCopper™ – EECF4-DN1-R-WN-B
