Description

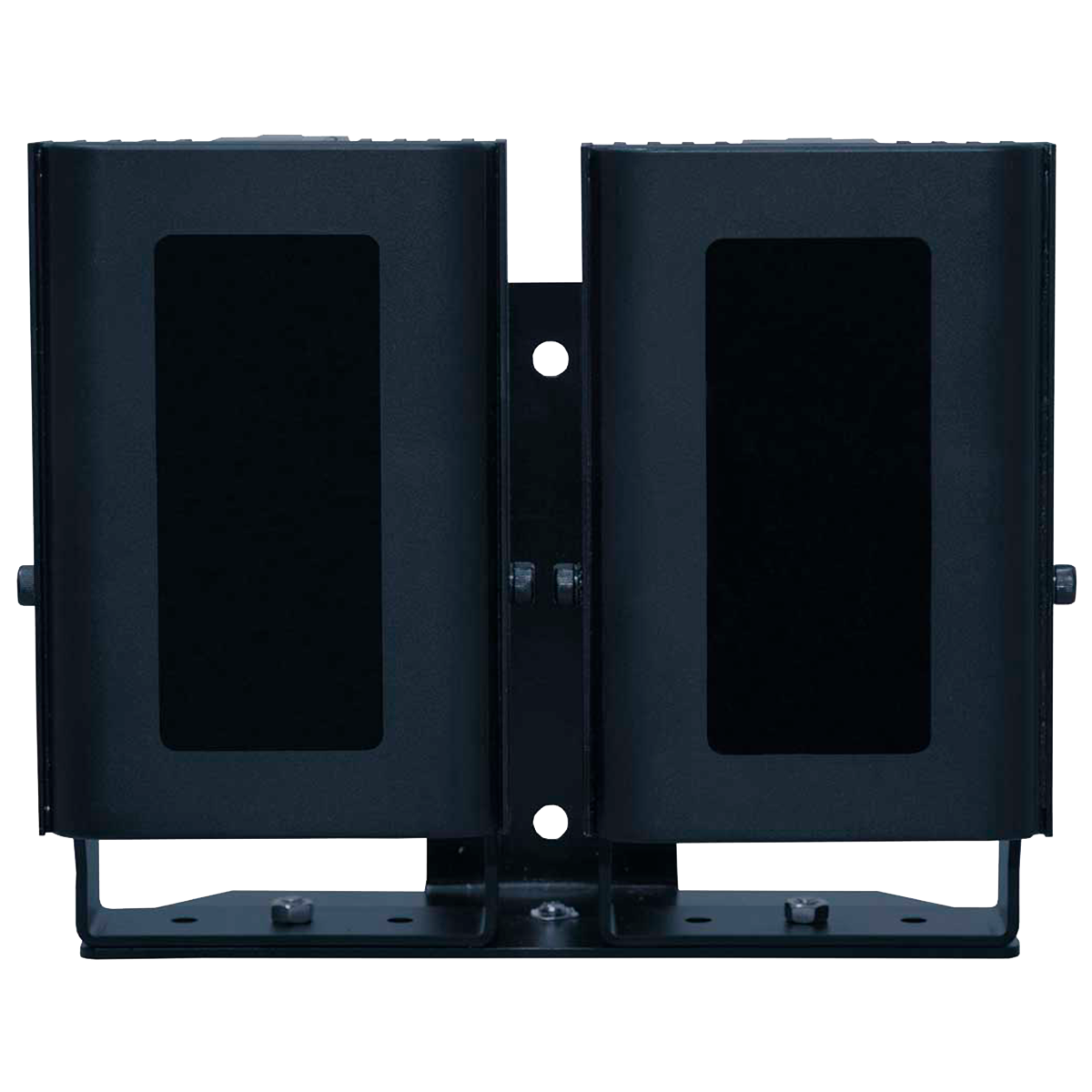

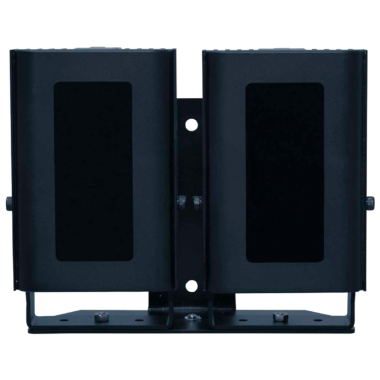

The Clarius® Plus range of high performance Infra-Red LED illuminators are designed to provide class leading performance, long life and ultra low maintenance.
Incorporating the latest surface mount dual core LED’s with enhanced optical output and outstanding reliability, they deliver excellent night time images.
Each unit is fitted with integrated control circuitry to carefully control LED output, delivering consistent illumination and projected working life in excess of 10 years.
The Clarius® Plus range of illuminators includes a new interchangeable lens diffuser system; which allows the user to quickly and easily alter the angle of illumination. Elliptical beam profiles allow more light to be delivered where it is needed, allowing both longer distances and minimising light wastage. The system also helps to prevent overexposure of foreground objects.
As standard the illuminator includes interchangeable lensing to deliver 10° circular, 20°, 30°, 60°, 80° and 95° elliptical beam profiles.
Installation is quick and easy, requiring only 12-32V DC / 24V AC +/- 10%.
Features:
- Distance up to 367m (1202ft)
- Latest Dual Core® SMT LED technology
- Adjustable angles
- Low power consumption
- IP66 weather proof rating
- CleanLITE® self cleaning lens coating technology
- 850nm or 940nm wavelengths
- Long life
- 5 year warranty
- Angle 10º, 20º, 30º, 60º, 80º & 95º
- Elliptical beam profiles
- 12-32 VDC / 24V AC +/- 10%
