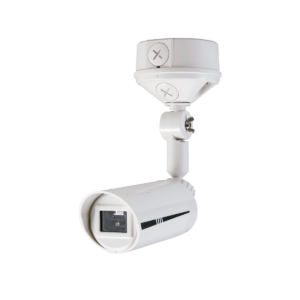

The FS-2000E Flame sensor quickly detects ultraviolet rays contained in flames and activates a built-in alarm sound plus an open collector output, adjustable Sensor Head.

Ref. FS-2000E Category: Tag:

Description

The FS-2000E sensor quickly detects ultraviolet rays contained in flames and activates a built-in alarm sound plus an open collector output.

Features:

  • External Output to a Security System
  • Alarm Memory
  • Variable Response Timer
  • Built-in Alarm Sounder
  • Variable Protection Area Adjustment
  • Compact Design

Specifications

  • Model: FS-2000E
  • Detection system: Ultraviolet rays detection (detected wave length 180~260nm)
  • Detection area: Distance: 10m (33ft) max. (7cm flame) – Angle: approx. 120 degrees conically – Adjustment range
    · Horizontal 25 degrees by base unit
    · Vertical 30 degrees (4 steps) by sensor head
  • Sensitivity adjustment: Detection timer 4 steps (0.2/1/6/30sec)
  • Power supply 10V to 30VDC (non-polarity)
  • Power consumption: Standby: 25mA or less – Alarm: 75mA or less (sound ON) / 40mA or less (sound OFF)
  • Alarm output: Dry contact relay Form C (NO/NC) – Contact action: off-delay (approx. 2 sec.) – Contact capacity: 30V (AC/DC) 0.3A, (protective resistance 3.3Ω)
  • Alarm memory: Auto-reset operation (on/off setting available) – Memory LED blinks for 3min., then lights for 47min.
  • LED Alarm LED (red): light on for off-delay 10 sec. – Memory LED (yellow): light on for memory, blinks at start-up
  • Buzzer: Alarm: intermittent every 0.2 sec during off delay 10 sec – Volume: 80dB or more 1m (3.3ft) ahead (silent setting available)
  • Tamper output: Dry contact relay form b (NC) – Capacity: 30V (AC/DC) 0.1A
  • Wiring: Terminals
  • Ambient temperature: -10°C to +60°C (+14°F to +140°F)
  • Ambient temperature range -20°C to +50°C (-4°F to +122°F) no dew, no frost
  • Installation: Indoor (ceiling or wall mount)
  • Weight: Approx. 150g (5.3oz)
  • Appearance: ABS resin (white)
  • Supplied accessories: · Sensor locking screw: 1pc – · Tapping screw: 2pcs
